Chemical Fiber Waste Recycling Pelletizing Extrusion Line

지금 연락

Chemical Fiber Waste Recycling Pelletizing Extrusion Line

최소 주문 수량 :	1세트	가격 :	USD 66,000 – 76,000 / Set (depending On Capacity & Configuration)
포장 세부 사항 :	수출표준포장/목재케이스/필름포장	배달 시간 :	75-80 일
지불 조건 :	신용장, D/P, T/T	공급 능력 :	65-85 일 당 1 세트

원래 장소:	중국	브랜드 이름:	MOOGE
인증:	CE	모델 번호:	PSF

상세 정보
기계 시험 보고서:	제공	재료:	애완 동물
판매 후 서비스 제공:	엔지니어	최종 제품:	깨끗한 플라스틱 펠렛
brand name:	MOOGE	보증:	1년
인버터:	씨줄	용량:	모델에 따라 다름, 일반적으로 100-1000 Kg/시간
강조하다:	chemical fiber pelletizing extrusion line , plastic waste recycling pelletizer , industrial plastic pelletizing machine

제품 설명

Product Overview

Waste PET Fiber Recycling Strand Pelletizing Line

Waste Chemical Fiber Recycling Strand Pelletizing Line is mainly used for recycling and pelletizing waste chemical fiber, synthetic fiber, polyester fiber, PET fiber, nylon fiber and other fiber materials. It is suitable for processing textile waste, fiber scraps, non-woven fabric waste, polyester fiber waste and related plastic fiber materials.

The production line can complete feeding, melting, plasticizing, filtration, strand cooling, pellet cutting and pellet collection. The final product is recycled plastic pellets, which can be used for extrusion, injection molding, fiber production, compounding or further plastic processing.

This line is designed for light, fluffy and irregular fiber materials. It can be equipped with suitable feeding system, single screw extruder, hydraulic screen changer, water cooling tank, air dryer, strand pellet cutter, vibrating screen and storage silo according to different material conditions and production requirements.

The machine has stable performance, easy operation and convenient maintenance. Capacity, voltage, screw design, machine layout and pelletizing system can be customized according to customer requirements.

Specification

Applications

Waste Chemical Fiber Recycling Strand Pelletizing Line is widely used for recycling and pelletizing waste chemical fiber, synthetic fiber, polyester fiber, PET fiber, nylon fiber, textile waste, fiber scraps, non-woven fabric waste, polyester yarn waste and other fiber materials.

The final recycled pellets can be used for plastic extrusion, injection molding, fiber production, sheet extrusion, profile extrusion, compounding, modification and other recycled plastic production.

This pelletizing line is suitable for chemical fiber recycling plants, textile waste recycling factories, plastic recycling plants, pelletizing factories, fiber production factories, non-woven fabric factories and waste material processing centers.

Technical Specifications

Model	Screw Diameter	Screw L/D	Main Motor Power	Capacity
PSF-SJ100	100 mm	35:1	55 KW	150-200 kg/hr
PSF-SJ120	120 mm	35:1	75 KW	200-300 kg/hr
PSF-SJ160	160 mm	35:1	110 KW	500-600 kg/hr
PSF-SJ200	200 mm	35:1	160 KW	800-1000 kg/hr

Compacting force feeder

With multi blades crushing and compulsively compress the flakes into extruder, ensure high efficient and stable production.

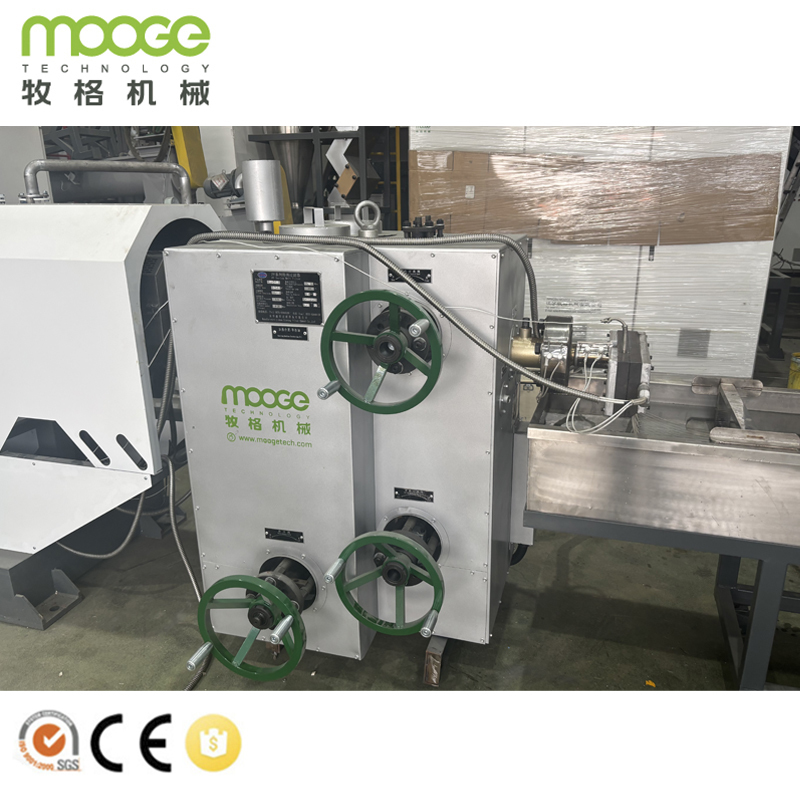

Chemical Fiber Waste Recycling Pelletizing Extrusion Line 0

Single Screw Extruder

Plasticizing material with high temperature

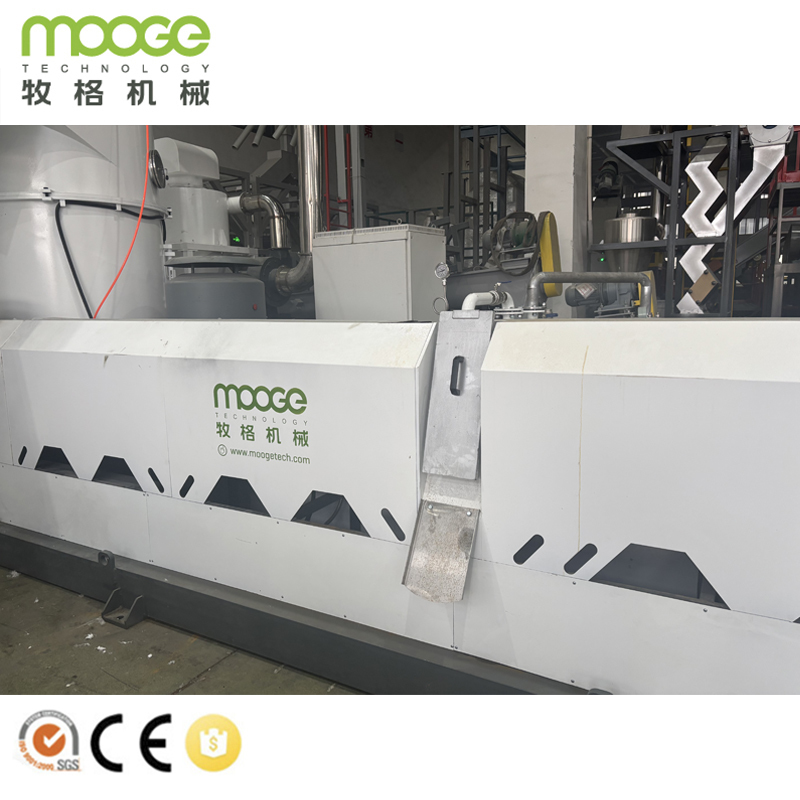

Chemical Fiber Waste Recycling Pelletizing Extrusion Line 1

Filter Machine

Filtering material impurity

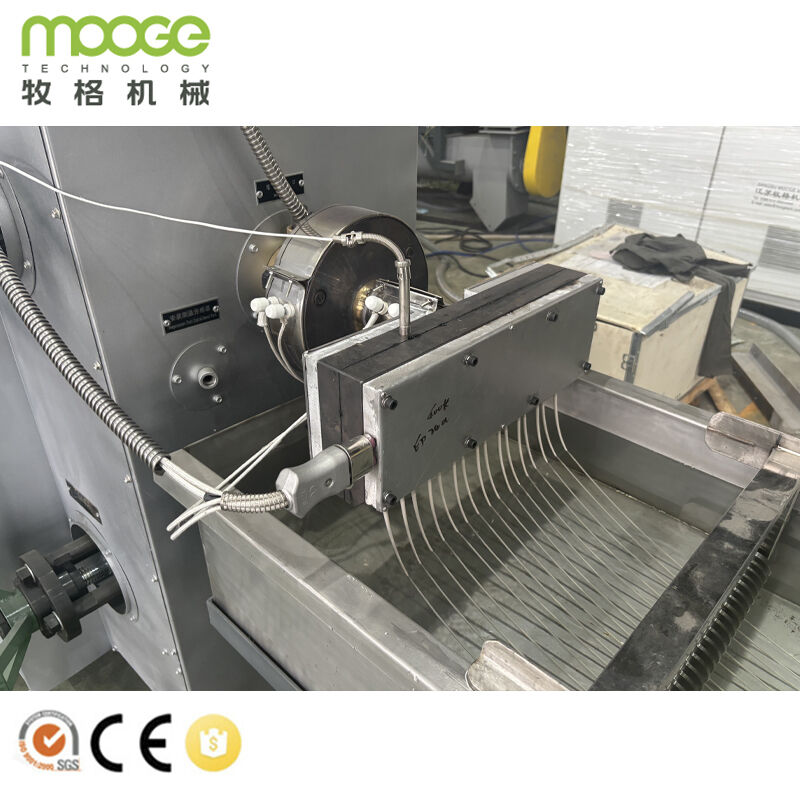

Chemical Fiber Waste Recycling Pelletizing Extrusion Line 2

Water cooling tank

Cooling the material with cold water

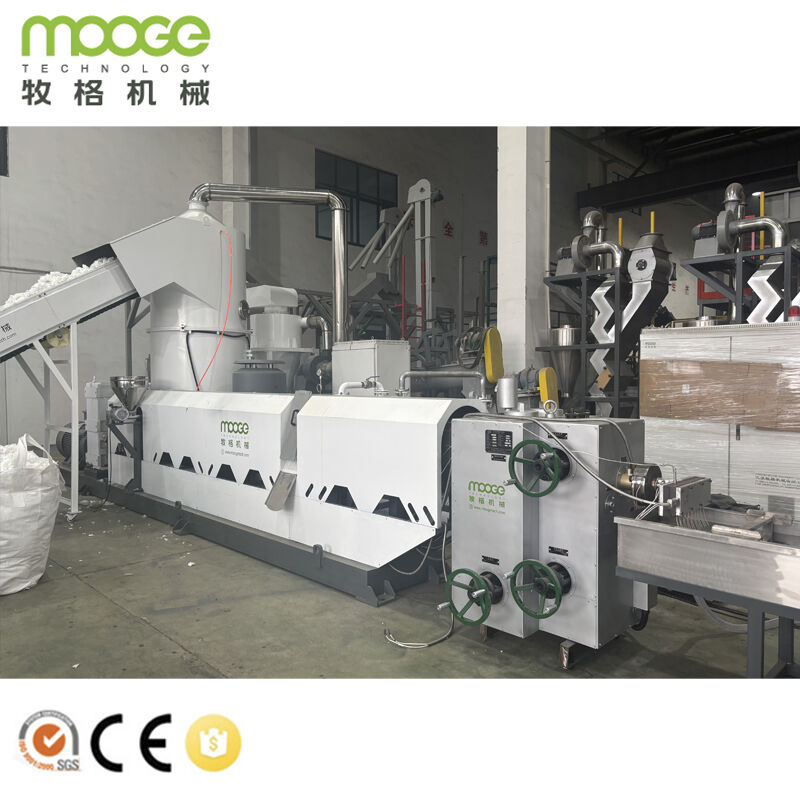

Chemical Fiber Waste Recycling Pelletizing Extrusion Line 3

Company Profile

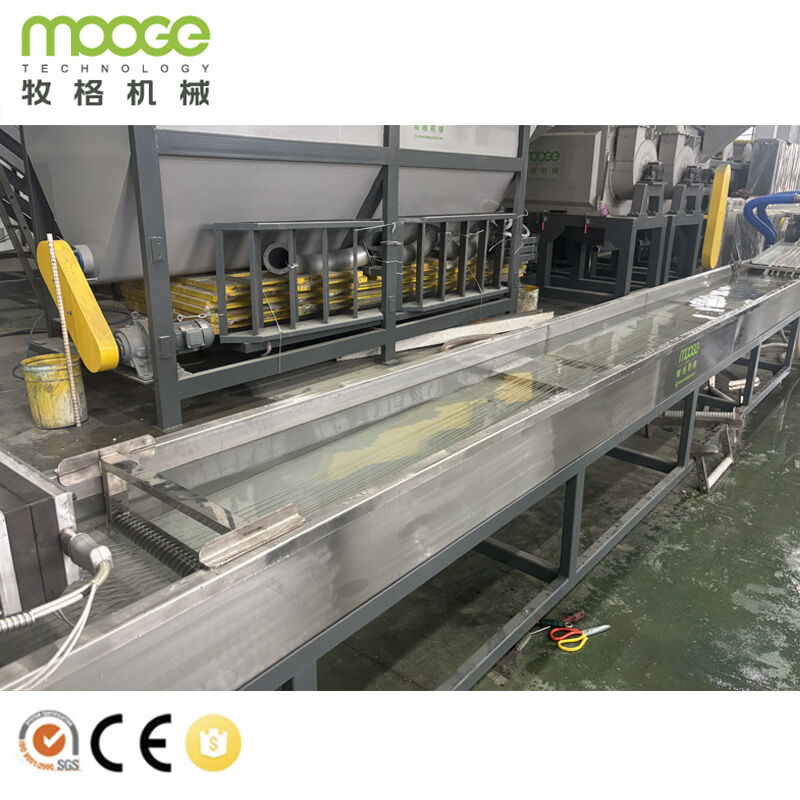

Chemical Fiber Waste Recycling Pelletizing Extrusion Line 4

Customized Solution

We can provide customized recycling solutions according to different customer requirements.

To recommend a suitable solution, please tell us:

What material do you want to recycle?
What is the material size?
Is the material clean or dirty?
What capacity do you need per hour?
What is your final product requirement?
Do you need a complete washing line or single machine?

According to your information, we can design a suitable process flow and machine configuration.

Why Choose Us

Complete plastic recycling solution
Customized machine configuration
Practical process design
Stable machine performance
Suitable for different plastic materials
Factory layout support
Installation and operation guidance
Timely after-sales service

Our company is one of the national high-tech enterprises, we have obtained many national invention patents, and has our registered
trademark and also the CE, SGS, ISO certification for our plastic recycling machines.

Contact Us

If you are interested in this plastic recycling washing line, please contact us.

Please send us your raw material photos, required capacity and final product requirement.
We will recommend a suitable machine configuration and quotation for you.

Contact us now to get a customized plastic recycling solution.
