Rigid Bottle De-labelling Pet Plastic Flakes Washing Recycling Machine

지금 연락

Rigid Bottle De-labelling Pet Plastic Flakes Washing Recycling Machine

최소 주문 수량 :	1	가격 :	$150,000.00/sets 1-1 sets
포장 세부 사항 :	표준 수출 포장 또는 맞춤형 포장	배달 시간 :	70 근무일
공급 능력 :	30세트/월당 세트 플라스틱 PET 병 세척 재활용 라인

원래 장소:	중국 장수	브랜드 이름:	MOOGE
인증:	CE	모델 번호:	MT

상세 정보
애플리케이션:	페트병 재활용	상태:	새로운
자동 등급:	오토매틱	플라스틱 유형:	애완 동물
생산 능력 (kg/h):	500 - 5000	기계 유형:	반려동물 병 세척 라인
장비 목록:	탈수기, 부유 세척 탱크, 열풍 건조기, 마찰 세척기, 라벨 분리기, 라벨 제거기, 열 세척 탱크	최대 생산 능력 (kg/h):	5000
전압:	사용자 정의	치수 (lwh):	62m x 5m x 4.5m
전원 (KW):	400	무게 (t):	20
보증:	12 개월	주요 판매 포인트:	높은 생산성
비디오 발신 검사:	제공	해당 산업:	플라스틱 폐기물 재활용 기계
쇼룸 위치:	터키, 이탈리아, 베트남, 브라질, 멕시코, 태국, 아르헨티나, 콜롬비아, 우크라이나	기계 테스트 보고서:	사용할 수 없습니다
마케팅 유형:	일반 제품	핵심 구성 요소의 보증:	1 년
핵심 구성 요소:	PLC, 태도, 기어박스, 모터, 기어	색상:	사용자 정의
모터 브랜드:	시멘스 또는 맞춤형	속도 제어:	인버터 제어
베어링 브랜드:	HRB 또는 맞춤형	세척부 재질:	스테인레스 스틸 또는 탄소강
남자 힘:	6~10명	최종 플레이크 크기:	12-14mm
증기 사용:	선택 과목	난방 방식:	전기, 증기 또는 소스
수분 함량:	1%	보증 서비스 후:	비디오 기술 지원, 온라인 지원
현지 서비스 위치:	이집트, 베트남, 필리핀, 페루, 파키스탄, 인도, 멕시코, 태국, 방글라데시, 남아프리카, 키르기스스탄	포트:	상하이 항구
강조하다:	PET plastic flakes washing machine , rigid bottle de-labelling recycling machine , plastic recycling washing line equipment

제품 설명

Product Overview

Rigid Bottle De-labelling Pet Plastic Flakes Washing Recycling Line

This MT-series Recycle Plastic Bottle Crushing Pet Flakes Washing Recycling Machine is mainly used to recycling the waste PET bottles, water bottles, cola bottles, PET sheet and PET packing containers, etc. The Waste Plastic Recycling Plant Scrap Pet Bottle Recycle Washing Line can easily remove the labels, caps, rings, glue, dirties and other impurities off from the pet plastic, finally we will get ideal PET flakes with good quality for reuse.

Product Specification

The Waste Plastic Recycling Plant Scrap Pet Bottle Recycle Washing Line we made with capacity from 500kg/h to 5000 kg/h.
We can design the machine layout into "L" or "U" shape according to buyer's actual factory area and requirements.

Model	Capacity	Installed Power	Steam Use	Water Supply	Manpower	Area Required
MT-500	500 kg/hr	190 KW	Optional	4-5 m3/hr	4-6 Person	6055 m
MT-1000	1000 kg/hr	260 KW	Optional	5-7 m3/hr	8-10 Person	8085 m
MT-2000	2000 kg/hr	400 KW	Suggest Use	10-15 m3/hr	10-12 Person	8085 m
MT-3000	3000 kg/hr	600 KW	80,000 Kcal	20-30 m3/hr	12-16 Person	100810 m
MT-4000	4000 kg/hr	800 KW	100,000 Kcal	30-40 m3/hr	15-20 Person	1351010 m
MT-5000	5000 kg/hr	1000 KW	120,000 Kcal	40-50 m3/hr	15-20 Person	1351010 m

We adopted well-known brand for the main motor, necessary parts of the machine.We manufacture the machine strictly according to the technical drawings and we can also make the components as buyer request

Item	Specification
Raw Material	Waste Rigid Plastic PET bottles, PET sheet, PET packages, etc
Finished Product	Clean dry plastic flakes (size can be recycled as buyer request)
Main Machine List	Bale Opener, Trommel, Label Remover Machine, Sorting Belt, Pre-washer Machine, Belt Conveyor, Crusher, Cold Washing Tank, High Speed Friction Washer, Hot Washing Tank, Centrifugal Dryer, Zig-zag Air Classifier, Color Sorter, Packing Silo
Machine Material	Machine frame is made by carbon steel, the machine washing part is made by SUS 304
Main Components	NSK/SKF bearing, TTO oil sealing, Guomao reducer,etc.
Electric Components	ABB/Delta inverter, Omron temperature meter, Schneider contactor, Chint switch, Siemens made in China motor, etc.
Warranty Period	One Year from the Machine Operation within 18 Months from the B/L Date
Turnkey After Service	Technical Support including the machine layout, electric diagram, working manual, engineer available to buyer's factory overseas for helping installation, commissioning, training workers, etc. consumable parts provided; 24-hours online after sale service;

Features At-A-Glance

Bale Opener Machine

Function: Open the pressed PET bales

>With 4 roller cylinder feeding the bottles equally, claw steel is very strong with 20mm thickness.

>Machine chamber made by solid strong steel, chamber size 1.6*1.6m (depth x width).
>We can make it with forklift working platform to push the bales, or with a hopper for temporary store the bales.

Label Remover Machine

Function:remove the labels from the bottles

>Blades made by tungsten carbide and are fixed by screw easy to adjust and replace

>The barrel designed with hydraulic system to lift up the chamber which is convenient to replace the blades

>The machine bottom with holes to drain out liquid which contained in the bottles, good for machine use

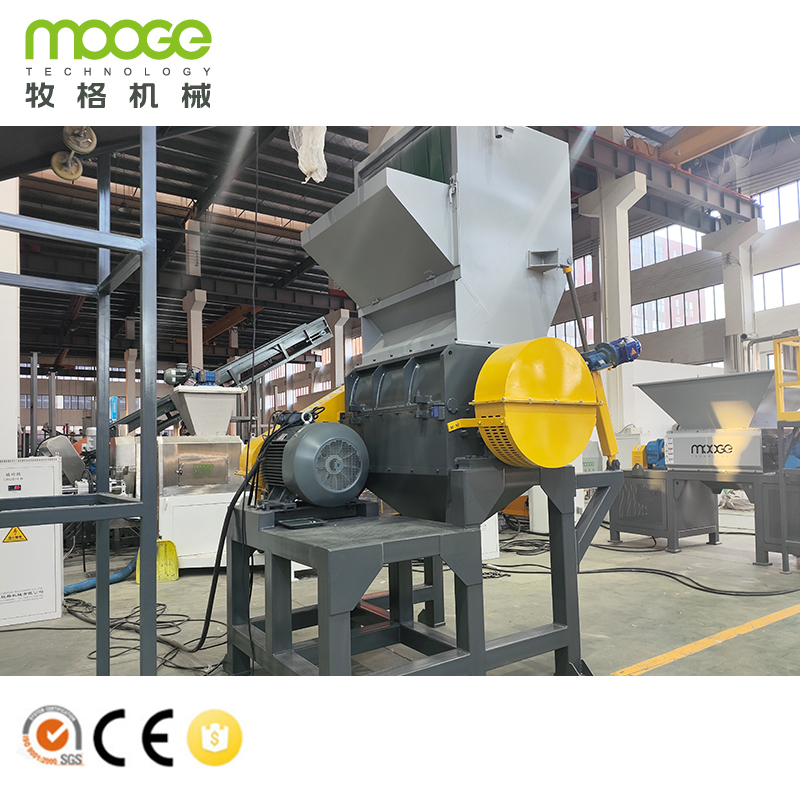

Plastic Crusher Machine

Function: crushing the PET bottles to small flakes.

>With water inlet doing the wet grinding which can extend the blades lifespan, reduce the dust generation.

>Crusher upper hopper opened by screw motor which save manpower

>Bearing house is installed outside of the crusher chamber so no dirty goes inside for longer use.

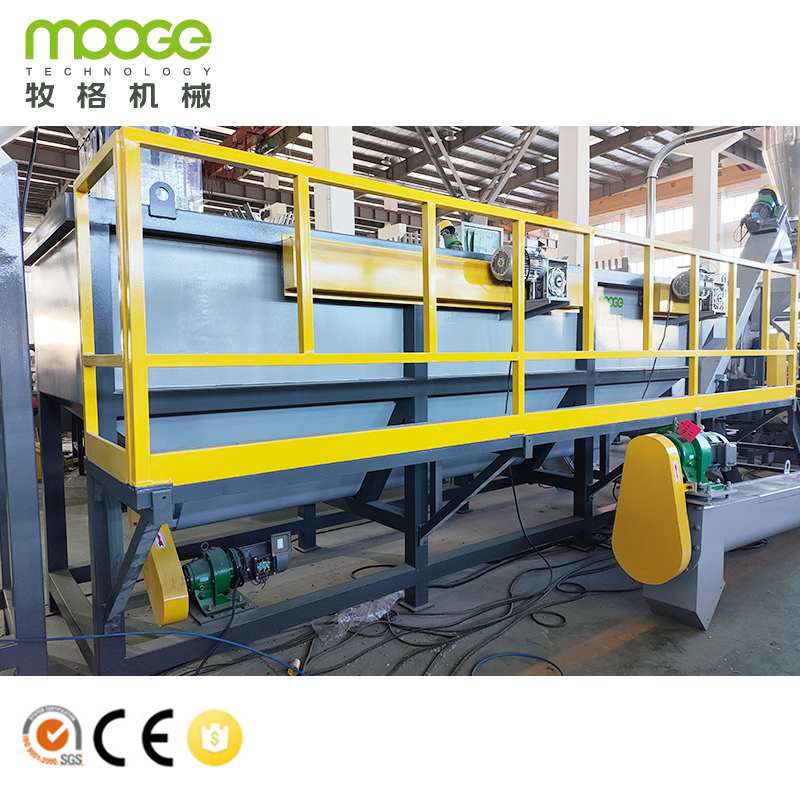

Floating Washing Tank

Function: with cold water washing out dirty from the flakes

>With the top rollers automatically take out the caps and rings and other impurities but with less water taken out

>Rotor shaft made by seamless steel tube.
>Screw is made by stainless steel, we have different model of floating washing tank according to your requirements.

Hot Washing Tank

Function: with hot water washing to remove oil/glue and other dirty from the flakes.
>The tank made with insulation layer to keep the hot water temperature and save energy.
>Feeding caustic soda or chemical detergent to washing the bottle flakes for better effect
>The water is heated up by steam, steam is generated by the steam boiler

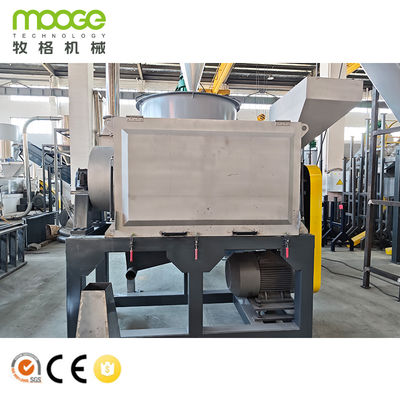

Horizontal Dewatering Machine

Function: take out dirty and remover water from the bottle flakes

>With high raotary speed reach up to 1500rpm with better effect for removing the water

>With the famous SKF roller bearing fixed outside for long lifespan

>Inside with mesh layer made by SUS304, which is also cleaned by the water spray system

“Zig-zag” Label Separator

Function: The fine dust separator machine will remove the final labels from the flakes to reduce the PVC content.

>Blower with air valve to control the air flux of blower.

>Bottom with air blower and pipe for collecting the pet flakes

>Zig zag main chamber one set made by stainless steel and with visible window

Customer Onsite

We sold the plastic recycling machine to hundreds of buyers from more than 100 countries in the world. Our high quality machine and good service are all well received by numerous customers from domestic and overseas. And we are expecting to seek the long-term business partner all over the world.
